Customized Hydraulic Actuator with Normal Temperature Operation and High Hydraulic Pressure for Valve Systems
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VSF35-550SR-HY | Working Type: | Rotary |
|---|---|---|---|
| Pressure: | Medium Pressure | Work Temperature: | Normal Temperature |
| Acting Type: | Spring Return | Material: | Steel |
| Structure: | Rack And Pinion | Torque Output: | 830~226,400Nm (Double Acting), 307~71,753Nm (Spring Return) |
| Operating Pressure: | 3~8 Bar (Pneumatic), 100 Bar (Hydraulic) | Operating Temperature: | -20°C~80°C (Standard), -40°C~80°C (Low), -20°C~150°C (High) |
| Seal Material: | NBR (Standard), HNBR (Low), Viton (High) | Torque Range: | 830Nm-25000Nm (Double Acting), 307-71753Nm (Spring Return) |
| Hydraulic Pressure: | 100 Bar (standard), Customizable Over 100 Bar | Mounting Style: | Various |
| Actuator Type: | Quarter-Turn | ||
| Highlight: | Customized Hydraulic Actuator,Normal Temperature Hydraulic Actuator,High Hydraulic Pressure Actuator |
||
Product Description
Hydraulic Actuator Rotary Hydraulic Cylinder Actuator Various Mounting Style Valve System Integrator
Heavy Duty Pneumatic Actuators/Hydraulic Actuators for Quarter-Turn Valves and Dampers.
Key Specifications
| Feature | Specification |
|---|---|
| Torque Outputs (Double Acting) | 830~226,400Nm |
| Torque Outputs (Spring Return) | 307~71,753Nm |
| Operating Pressures (Pneumatic) | 3~8 Bar |
| Operating Pressures (Hydraulic) | 100 Bar (higher pressures available upon request) |
Temperature Ranges
- Standard: -20°C to 80°C (NBR seal)
- Low Temperature: -40°C to 80°C (HNBR seal)
- High Temperature: -20°C to 150°C (Viton seal)

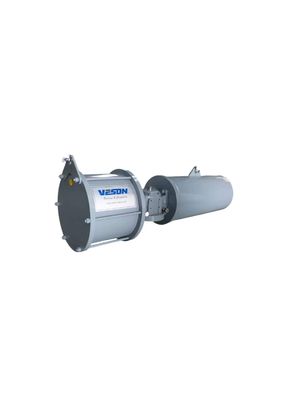

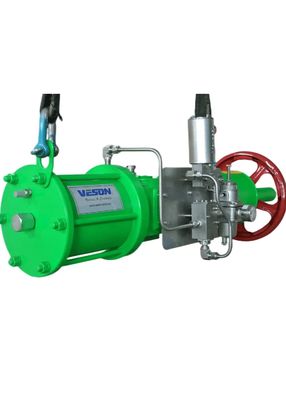

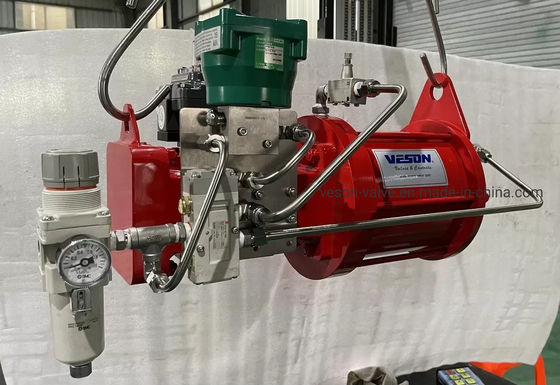

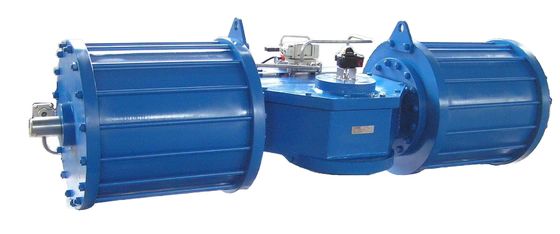

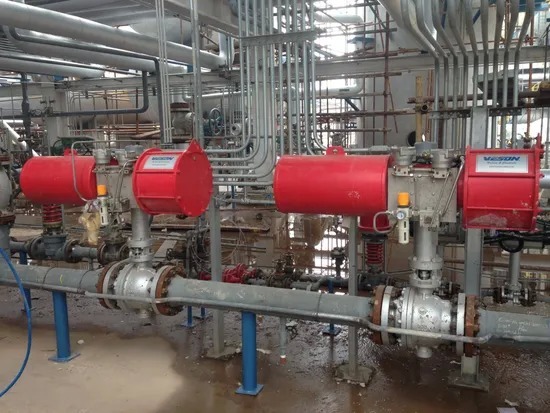

Product Images
