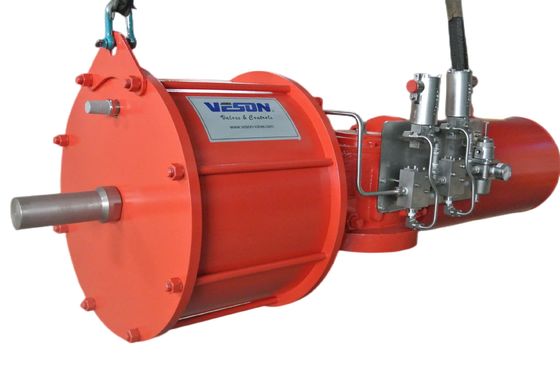

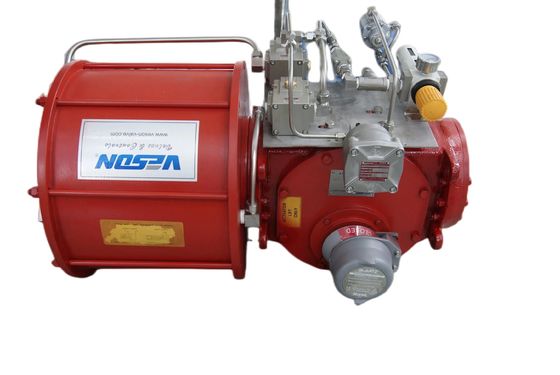

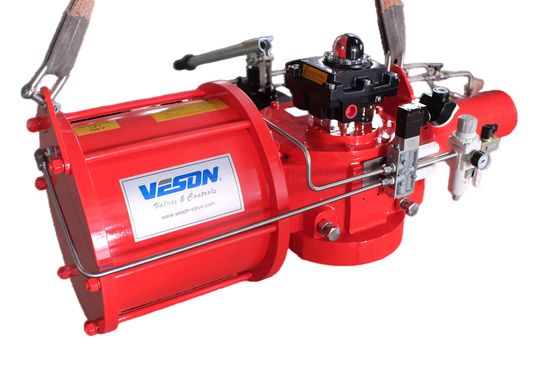

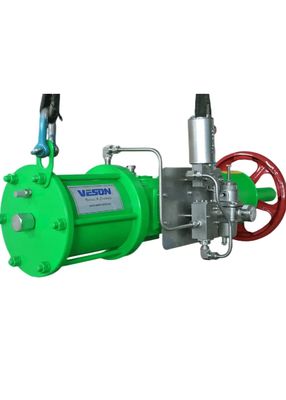

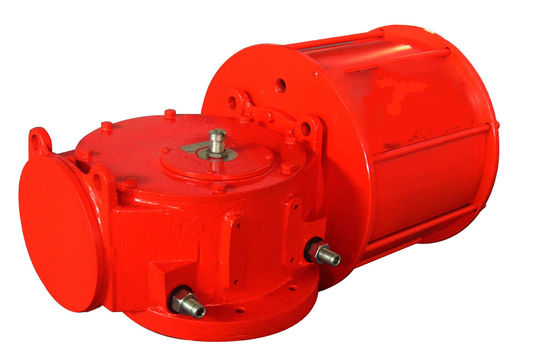

Scotch Yoke Hydraulic Actuator with 135 Bar Pressure 2000psig and High Torque Output
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VSF35-550SR-HY | Pressure Direction: | Double-acting Cylinder |
|---|---|---|---|
| Double-Acting Type: | Common Cylinder | Torque Output Double: | 830~226,400Nm |
| Torque Output Spring: | 307~71,753Nm | Pneumatic Pressure: | 3~8 Bar |
| Hydraulic Pressure: | 70/700/135 Bar | Standard Temperature: | -20° C~80° C |
| Low Temperature: | -40° C~80° C | High Temperature: | -20° C~150° C |
| Seal Material Standard: | NBR | Seal Material Low: | HNBR |
| Seal Material High: | Viton | Production Capacity: | 50000PC / Y |
| HS Code: | 84123900 | ||
| Highlight: | 135 Bar Hydraulic Actuator,2000psig Scotch Yoke Actuator,High Torque Output Hydraulic Actuator |
||
Product Description
Scotch Yoke Hydraulic Actuator 135 Bar 2000psig
Key Specifications
Torque Outputs (guaranteed):
Double acting: 830~226,400Nm | Spring return: 307~71,753Nm
Operating Pressures:
Pneumatic: 3~8 Bar | Hydraulic: 70/700/135 Bar (100+ bar available on request)
Operating Temperatures:
Standard: -20°C~80°C (NBR seal) |
Low Temp: -40°C~80°C (HNBR seal) |
High Temp: -20°C~150°C (Viton seal)
