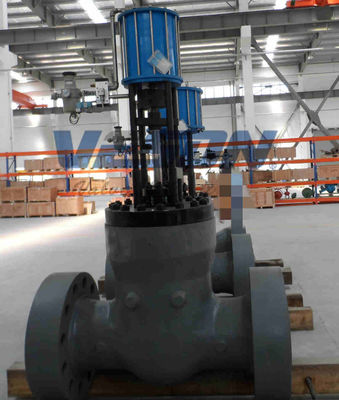

Carbon Steel Pneumatic Gate Valve Actuator Emergency Drain Valve With Pneumatic Actuator
Product Details:
| Place of Origin: | China |
| Brand Name: | VESON |
| Certification: | ISO CE |
| Model Number: | VSL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Exw Fob Shanghai |
| Packaging Details: | plywood case with reinforced packing |
| Delivery Time: | 6-8 weeks |
|
Detail Information |
|||
| HSF: | VSL Pneumatic Linear Actuators | Material: | Carbon Steel |
|---|---|---|---|
| Color: | Standard Color Is Red | Acting Type: | Single Acting/ Double Acting |
| Temperature Range: | Standard:-30 To 100℃ | Key Words: | Heavy Duty Linear Actuator |
| Highlight: | Pneumatic Gate Valve Actuator,Carbon Steel Gate Valve Actuator,Emergency Drain Valve Pneumatic Actuator |
||
Product Description
Carbon Steel Pneumatic Gate Valve Actuator / Linear Rotary Actuator Heavy Duty
Carbon steel design single-and double-acting cylinders, electroless nickel-plated to reduce the surface roughness and to provide minimum friction and maximum protection against corrosion.
Carbon steel piston with PTFE/rubber seals to reduce friction and avoid stick-slip effect even after prolonged periods without operation.
Carbon steel, chromium-plated piston rod to prevent corrosion and to minimize sliding friction on the dynamic seals.
Visual position indicator directly connected to the valve stem showing actuator/valve full linear stroke.
Totally enclosed carbon steel spring cartridge with the additional safety feature to avoid injury during the disassembly of the spring enclosure.
Carbon steel open type adaptor with bottom flange machined according to the valve flange.
Actuators can be fitted with handwheel or hydraulic manual override on request.
Specifications
Linear Actuators
Veson Valve Ltd. manufacture comprehensive range of
double-acting and spring-return pneumatic and hydraulic
actuators to suit all valve sizes. These units are specifically sized
for each application.
Operating Pressure: Pneumatic up to 12Bar (175psi)
Hydraulic up to 250 Bar(3625 psi)
Max.Thrust:
Pneumatic Double-Acting
1800000N (404656 lbs)
Pneumatic Spring-Return
400000N (89925 lbs)
Hydraulic Double-Acting
5500000N (1236450 lbs)
Hydraulic Spring-Return
400000N (89925 lbs)
Temperature Ranges:
Standard:-30 to 100℃
High:-20 to 160℃
Low:-40 to 160℃
Extreme Low:-60 to 160℃
