Globe Control Valve Pneumatic On/Off Globe Valve With Electric Pneumatic Actuator

Globe Control Valve Pneumatic On/Off Globe Valve With Electric Pneumatic Actuator

Product Details:

Brand Name: Veson
Get Best Price Contact Now

Detail Information

Ratings: Up To ANSI 150, 300, 600 Flow Direction:: Flow To Open, Flow To Close
Materials: A216 Cr. WCB, SS304, SS316, Leakage Standard: ANSI/FC, IEC60534-4
Highlight:

Pneumatic Drive Globe Control Valve

,

Pneumatic On Off Globe Valve

,

Globe Control Valves Electric Pneumatic Actuator

Product Description

Globe straight-way series is a very versatile control valve for the main applications. Its high performance derives from using a balanced and cage-guided plug. ET series is particularly suitable for heavy duties and for any other application under the most demanding service conditions. Due to their simple construction, large range of trim types, and available materials, these valves are suitable for a wide range of applications, including also high temperature and corrosive fluids, severe low-noise requirements, and sour service in accordance with NACE standards.
Main advantages:

  • High-pressure drop capability with no practical limitations
  • Improved plug stability due to large guiding areas
  • Wide-range capability is allowed by a great number of reduced capacity trims
  • Excellent noise attenuation with low-noise single-stage trim for gas and steam service
  • Improved cavitation protection on liquid services
  • Multistage trims are also available for cavitation control.
  • Balanced plug construction reduces thrust and actuator sizes
  • Piloted plug construction for tight shut-off up to class V in high-temperature services

Technical characteristics:

  • Sizes: 1/2”, 3/4”, 1”, 1-1/2”, 1-3/4”, 2″, 3″, 4″, 5”, 6″, 8″
  • Ratings: up to ANSI 150, 300, 600
  • Connection: Flanged, butt-welded, socket-welded, and threaded
  • Leakage Standard: ANSI/FC, IEC60534-4
  • Flow direction: flow to open, flow to close
  • Materials: A216 Cr. WCB, SS304, SS316, CF8M, CF3M, CF3, CF8, LCB, LCC, 2205, Duplex stainless steel etc.

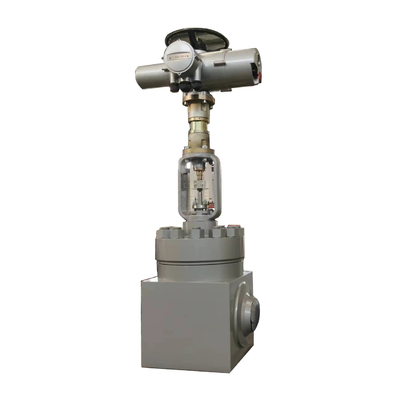

  • Globe Control Valve Pneumatic On/Off Globe Valve With Electric Pneumatic Actuator 0
  •

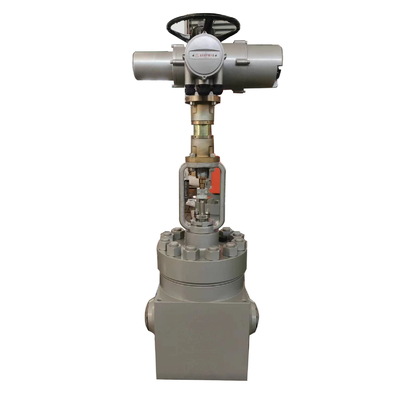

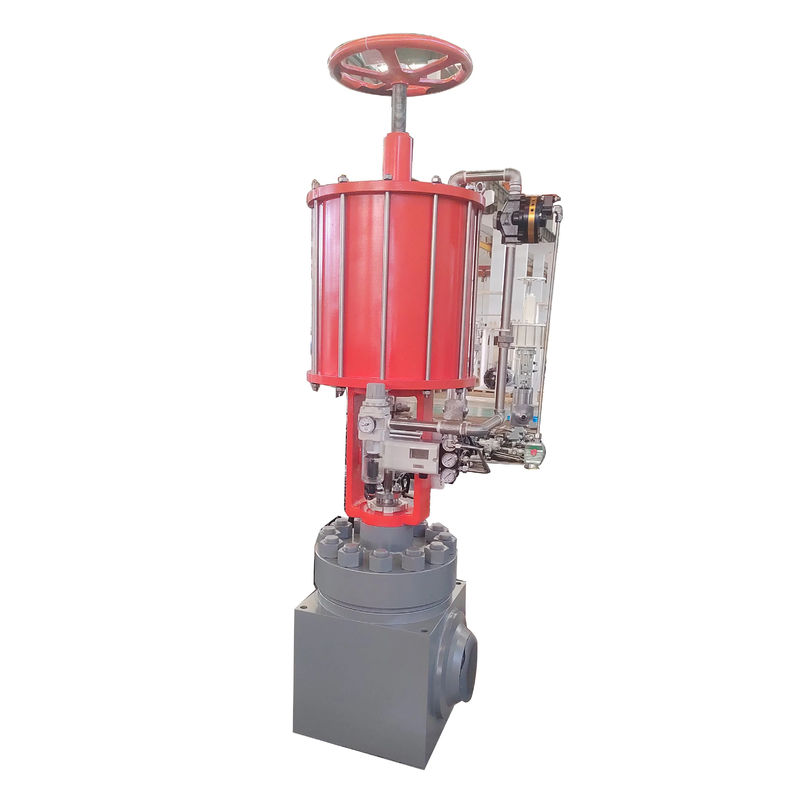

  • Globe Control Valve Pneumatic On/Off Globe Valve With Electric Pneumatic Actuator 1Globe Control Valve Pneumatic On/Off Globe Valve With Electric Pneumatic Actuator 2
  • Globe Control Valve Pneumatic On/Off Globe Valve With Electric Pneumatic Actuator 3Globe Control Valve Pneumatic On/Off Globe Valve With Electric Pneumatic Actuator 4
  • Globe Control Valve Pneumatic On/Off Globe Valve With Electric Pneumatic Actuator 5Globe Control Valve Pneumatic On/Off Globe Valve With Electric Pneumatic Actuator 6
