Product Details:

Place of Origin: China
Brand Name: VESON/OEM
Certification: ISO CE
Model Number: VSM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ea
Packaging Details: Plywood case with reinforced packing
Delivery Time: 5-8 days
Supply Ability: 10000
Get Best Price Contact Now

Detail Information

Standard: ISO 5211 Material: Cast Iron Ductile Iron Or Aluminum Alloy Body
Product Name: Declutchable Manual Override Gearbox Protection: IP65
Feature: Small Volume, Light Weigh Brand: VESON/OEM
High Light:

iso 5211 declutchable manual override gearbox

,

cast iron declutchable manual override gearbox

,

veson declutchable gearbox

Product Description

VESON Manual Override Declutchable Gearboxes comes with ISO Actuator and Valve mountings



Veson VSM series Manual Override Declutchable Gearboxes ranging from 300Nm to 3200Nm comes with ISO Actuator and Valve mountings, offer reliable and simple manual positioning of valves, and other quarter-turn devices where manual override is required on pneumatic or hydraulic rotary actuators.

All our TCMO series are of rugged design, lightweight and modular to provide the most efficient and cost-effective solution for a comprehensive range of manual override options. Our Gearboxes are external epoxy painted which provides superior resistance for the rigorous environment. The self-locking worm gear is designed to provide safe and easy operation and long life.



Product description

● the reducer and gas combined use of pneumatic device is used to open the 90 ° butterfly valve, ball valve, manual or pneumatic drive.

Characteristic

The series of products, output torque and pneumatic device, valve matching.

● has the advantages of small volume, light weight, reasonable design, novel style;

● pneumatic, manual. Rotating the eccentric rod device is 90 °, the handle is located above the position, manual operation. The handle is located in the lower position, pneumatic operation.

● worm connected hole two keyway are separated by 90 degrees so that the user to choose the device with the valve body relative position.

● products with special grease, and valve assembly, whole sealing, dustproof, waterproof, protection class IP65.

Instructions for use

● reducer and the bottom surface of the valve is connected, on the support surface is connected with the cylinder, valve shaft through a wormhole, the valve shaft end square matched with the cylinder hole; (process: pneumatic cylinder to drive the valve shaft,

With the transfer gear. Manual, engaged with the worm wheel, driven by the rotation of the valve shaft, cylinder piston also follow-up).

● the handle is located above the position, manual operation, not pneumatic. Pull out the limit pin, rotate the handle clockwise to the lower position. The worm, worm disengage, pneumatic.

● handle at the lower position, pneumatic operation, no manual. Pull out the limit pin, counterclockwise rotation of the handle to the top position. The worm, worm gear, manual. Pneumatic switch manual process

Top teeth phenomenon, a rotation handwheel, ensure that the worm wheel and the worm gear mesh correctly, you can manually.

● pneumatic drive and manual cannot.

Product characteristics:

1  small volume, light weight, reasonable design, novel style;

2  series of products, output torque and pneumatic device, various valves.

3  worm connected holes made an octagonal structure or special money with you to custom angle connection or key connection so that users can choose according to the relative position of the same body device.

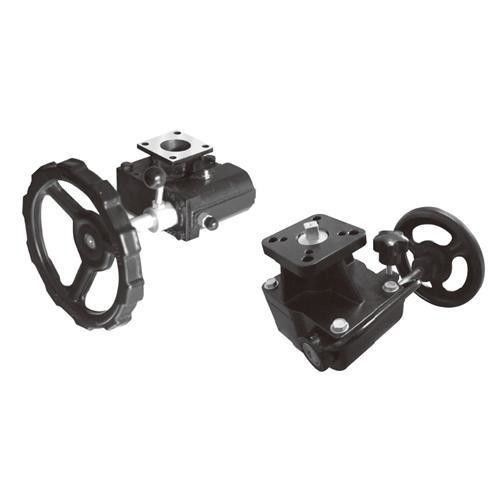

Veson Declutchable Manual Override Gearbox Comes With Iso Actuator And Valve Mountings 0
