ISO5211 Valve Actuator Mounting Kits Drive Shaft Adapter Sleeve  For Square Fitting

ISO5211 Valve Actuator Mounting Kits Drive Shaft Adapter Sleeve For Square Fitting

Product Details:

Place of Origin: China
Brand Name: Veson/OEM
Certification: CE ISO
Model Number: VSMB

Payment & Shipping Terms:

Minimum Order Quantity: 10 Ea
Price: FOB shanghai ;EXW
Packaging Details: plywood case with reinforced packing
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Get Best Price Contact Now

Detail Information

Material: Steel Alloy With ENP Mounting Kits: Mounting Kit, Brackets And Couplings
ISO5211: F03/F04 F10-F12-F14-F16
High Light:

valve actuator mounting bracket

,

shaft adapter sleeve

Product Description

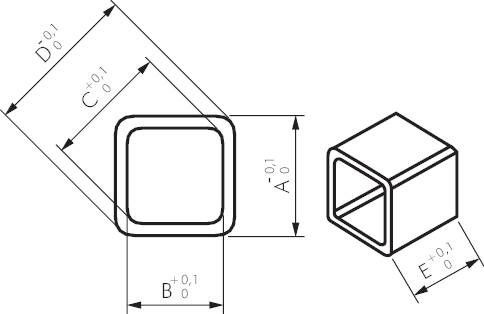

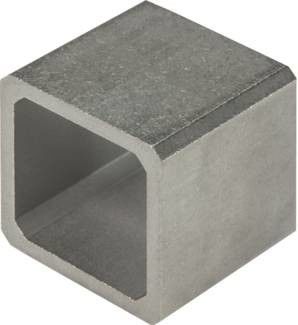

ISO5211 Drive Shaft Reducing Sleeve For Square Fitting Reducer Square Drive





Description Technical Description
Star Reduction Adaptor for Drive Shaft (Standard Material: powder metallurgy) 11mm×9mm×12mm(H)
14mm×9mm×16mm(H)
14mm×11mm×16mm(H)
17mm×11mm×19mm(H)
17mm×14mm×19mm(H)
19mm×11mm×21mm(H)
19mm×14mm×21mm(H)
19mm×17mm×21mm(H)
22mm×14mm×24mm(H)
22mm×17mm×24mm(H)
22mm×19mm×24mm(H)
27mm×17mm×29mm(H)
27mm×19mm×29mm(H)
27mm×22mm×29mm(H)
36mm×19mm×38mm(H)
36mm×22mm×38mm(H)
36mm×27mm×38mm(H)
Star Reduction Adaptor for Drive Shaft
(Material:Material: AISI316 Stainless Steel )
11mm×9mm×12mm(H)
14mm×9mm×16mm(H)
14mm×11mm×16mm(H)
17mm×11mm×19mm(H)
17mm×14mm×19mm(H)
22mm×17mm×24mm(H)
22mm×17mm×24mm(H)
22mm×19mm×24mm(H)



To reduce the female square drive of pneumatic or electrical drives or to enlarge the male square drive of fittings. Squares in accordance to ISO 5211 - DIN 3337 - NAMUR with rounded corners and small tolerance range
