High Accuracy Emergency Shutdown Valve Quarter Turn Operation Close Valve In Less Than A Second

Product Description

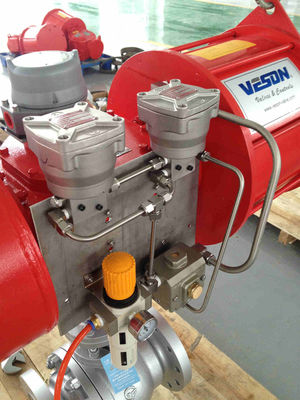

Emergency Shutdown Valve Quarter-Turn Operation Close Valve In Less Than A Second

ESDV features are designed for accuracy and dependability

Full Open Position – Normal Operation
The ESDV provides minimal pressure Differential when Differential when the valve the valve is in full-open-open position.
The full bore ball valve virtually acts like a pipe minimizing process fluid turbulence

Full Closed Position – Emergency Situation

Setpoint pressure has been exceeded and the ESDV the ESDV has fully closed providing fully closed providing tight shutoff with its double-seated design.

■ Pressure Ratings: ANSI Class 150 - 2500

■ Shut Off: Soft seat - tested up to Class VI Metal seat - tested up to Class V

■ End Connections: RFFE, RTJ, weld end

■ Closing Time < 2 second (depending on size



Operation Step	Emergency Shutdown Valve Quarter-Turn Operation to Close the Valve Action
Step 1	Verify the availability of power supply and ensure it is turned on.
Step 2	Identify the emergency shutdown valve to be closed.
Step 3	Position yourself in a safe location away from the valve.
Step 4	Locate the manual or automatic control mechanism for the valve.
Step 5	If using a manual control mechanism, turn the handle or lever clockwise to close the valve.
Step 6	If using an automatic control mechanism, initiate the shutdown sequence according to the manufacturer's instructions.
Step 7	Monitor the valve's position indicator to ensure it is fully closed.
Step 8	Confirm the valve's closure by checking the pressure or flow indicators associated with the valve.
Step 9	Secure the valve by engaging any locking mechanisms, if applicable.
Step 10	Notify the appropriate personnel or control room about the closure of the emergency shutdown valve.
