Pneumatic Bray Butterfly Valves With Switches / Solenoids & Positioners
Product Details:
| Place of Origin: | China |
| Brand Name: | VESON |
| Certification: | ISO CE |
| Model Number: | VS-140SR08FC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Fob Shanghai ,EXW |
| Packaging Details: | plywood case with reforinced packing |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Butterfly Valve: | Wafer Type | Type: | Double Acting Or Spring Return |
|---|---|---|---|
| Name: | Air Operated Butterfly Valve | Pressure Range: | 25mm - 200mm: 16 Bar 250mm - 300mm: 10 Bar |
| Temperature Range: | -10oC To 120oC | Application: | General |
| Highlight: | air actuated butterfly valve,wafer type butterfly valve |
||
Product Description

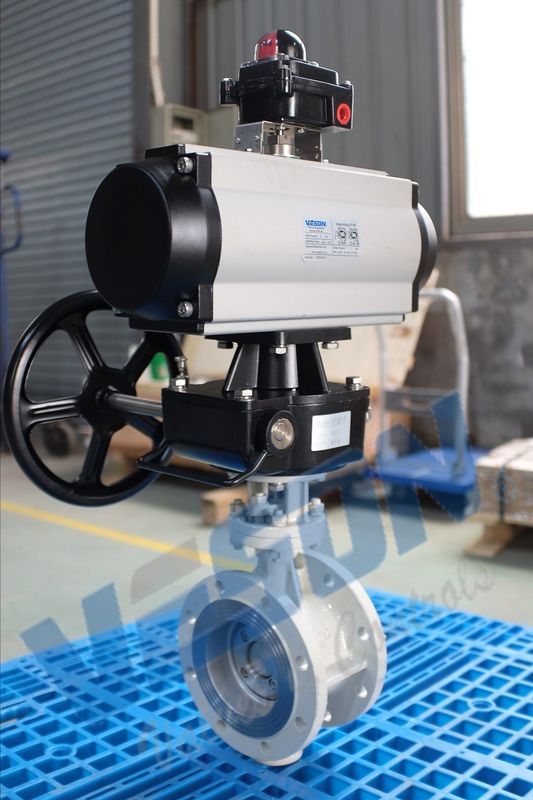

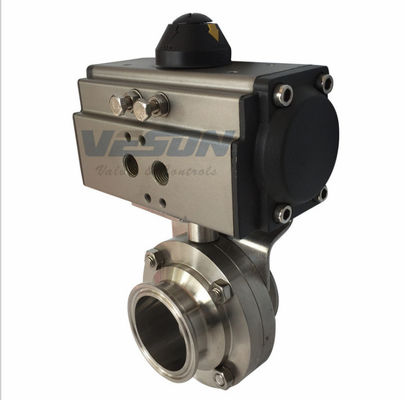

Bray Valve With Pneumatic Actuator ISO mount pneumatic actuators complete with switches, solenoids & positioners
Practical examples: • Process-gas cleaning in a foundry • Waste air purification in chemical / pharmaceutical industry • Chemical waste burning plant • Fire-protection for plastic pipeline.
For shutting off, controlling, diverting or reducing the flow of corrosive and chemically-polluted exhaust air, flue gases and process gases, for example in:
• Domestic and special waste incinerators
• Denitrification and flue gas desulphurization plants (DeNOxand FGD plants)
• Thermal power plants (e.g. gas turbine plants)
• Smelting works, production of precious and special metals, e.g. steel, copper, gold, silver, platinum, titanium, palladium
• Cement works and mineral oil refineries
• The process industry (chemicals, pharmaceuticals, foodstuffs) and the semiconductor industry
ISO mount pneumatic actuators complete with switches, solenoids & positioners
for on/off and modulating service
|
Veson High-Performance Pneumatic Butterfly Valve |
|---|
| Description: |
| A high-performance pneumatic butterfly valve is a type of valve designed for optimal performance in controlling and regulating the flow of fluids or gases in various industrial applications. It features a unique design that allows for precise and efficient operation, offering superior performance in demanding conditions. The valve consists of a disc or plate, which rotates within the valve body to control the flow by either fully opening, partially opening, or completely closing the passage. |
| Key Features: |
| - Robust Construction: The valve is built with durable materials such as stainless steel or high-grade alloys, ensuring strength and resistance to corrosion, wear, and harsh operating environments. |
| - High Flow Capacity: It offers a large flow area and low-pressure drop, enabling efficient fluid or gas transportation with minimal energy loss. |
| - Tight Shut-off: The valve provides a tight seal when fully closed, preventing leakage and ensuring system integrity. |
| - Precise Control: It offers precise flow control with quick response times and accurate positioning, allowing for precise regulation of fluid or gas flow rates. |
| - Low Maintenance: The valve design minimizes maintenance requirements, offering long service life and reduced downtime. |
| - Actuation Options: It can be easily actuated using pneumatic actuators, allowing for remote or automated control. |
| - Wide Range of Applications: The valve is suitable for various industries such as oil and gas, chemical, water treatment, power generation, and more. |
| Applications: |
| - Process Control Systems: Used in pipelines and systems where precise control and regulation of fluid or gas flow are critical. |
| - Industrial Applications: Suitable for handling various media such as water, oil, gas, steam, chemicals, and abrasive materials. |
| - HVAC Systems: Used in heating, ventilation, and air conditioning systems to control the flow of air or fluids. |
| - Water Treatment Plants: Applied in water treatment processes for flow control and isolation applications. |
| - Power Plants: Utilized in power generation plants for controlling the flow of steam, cooling water, and other fluids. |
| - Oil and Gas Industry: Used in upstream, midstream, and downstream operations for flow control and isolation purposes. |
| Maintenance Tips: |
| - Regularly inspect and clean the valve to prevent any buildup or obstruction that may affect its performance. |
| - Check and lubricate the valve components as per the manufacturer's recommendations. |
| - Monitor the actuator and control system for any issues and ensure proper functioning. |
| - Follow proper installation and operating procedures provided by the manufacturer. |
| - Periodically test the valve for leakage and functionality to ensure its reliability. |
