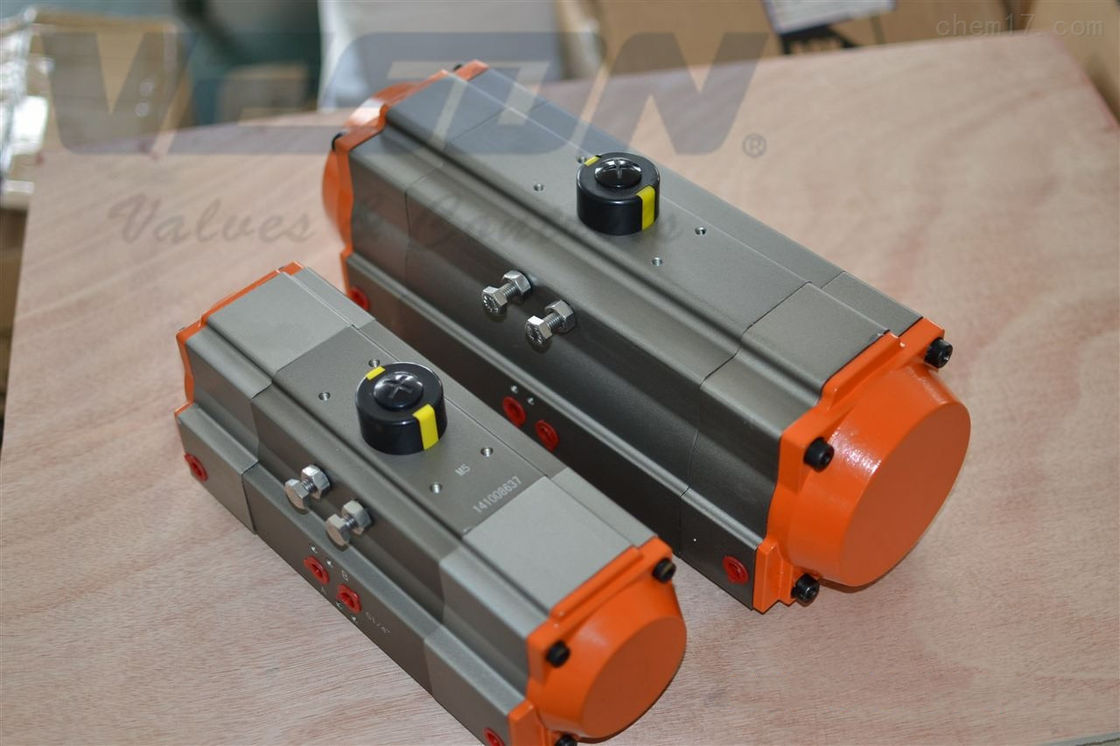

90° Rotation Pneumatic Air Actuator With International Standards CE Certified

90° Rotation Pneumatic Air Actuator With International Standards CE Certified

Product Details:

Place of Origin: China
Brand Name: Veson/OEM
Certification: ISO/CE/SIL3
Model Number: VS-083DA-180°

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ea
Price: FOB Shanghai
Packaging Details: Carton/Plywood case
Delivery Time: One week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/Month
Get Best Price Contact Now

Detail Information

Material: Aluminum Alloy Type: Quarter Turn Pneumatic Actuator
Function: Quarter Turn Actuator Valve: Pneumatic Piston Actuator
3 Position: 3-position (90° Rotation) 3 Position Pneumatic Actuators Rotate Angle: 90°+- 5%
High Light:

quarter turn pneumatic actuator


double acting pneumatic actuator

Product Description

Position indicator with NAMUR is convenient for mounting accessories such as limit switch box, positioner and so on.
The pinion is high-precision and integrative, made from nickel alloy steel, full conform to the latest standards of ISO5211,DIN3337,NAMUR.The dimensions can be customized and the stainless steel is available.
3. Actuator body
According to the different requirements, the extruded aluminum alloy body can be treated with hard anodized, powder polyester painted (different colors is available such as blue, orange, yellow etc.) or PTFE or nickel plated.
4.End caps
Die-casting aluminum powder polyester painted in different colors, PTFE or nickel plated.
The twin rack pistons are made from die-casting aluminum treated with hard anodized or made from cast steel with galvanization .Symmetric mounting position, long cycle life and fast operation, reversing rotation by simply inverting the pistons.
6.Travel adjustment
The two independent external travel stop adjustment bolts can adjust 5˚ at both open and close directions easily and precisely.
7.High performance springs
Preloaded coating springs are made from the high quality material for resistant to corrosion and longer cycle life, which can be demounted safely and conveniently to satisfy different requirements of torque by changing quantity of springs.
8.Bearings & guides
Made from low friction, long-life compound material, to avoid the direct contact between metals. The maintenance and replacement are easy and convenient.
9. O-rings
NBR rubber o-rings provide trouble-free operation at standard temperature ranges. For high and low temperature, viton or silicone is used.



Why choose us
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured .
