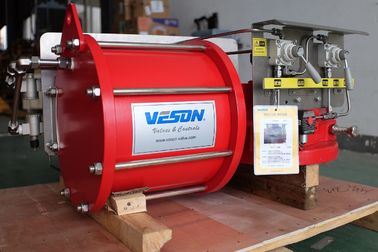

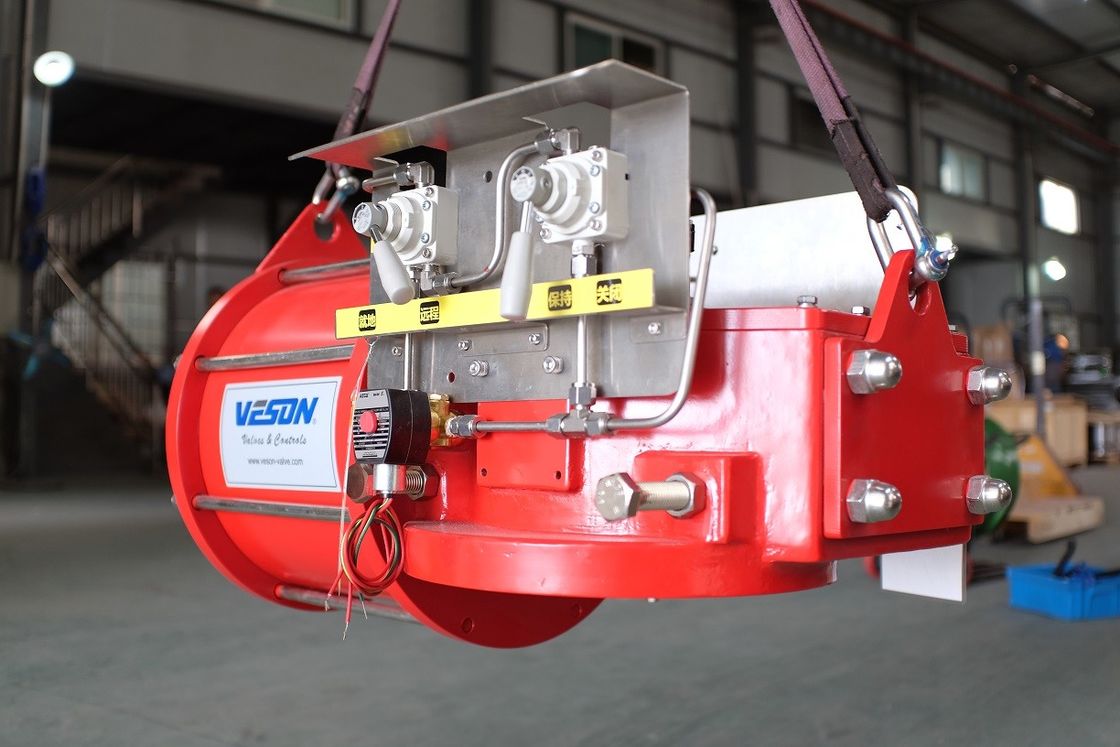

Pneumatic emergency shut off valve Pneumatic Rotary Valve Actuator / Remote Valve Actuator Highly Sealed
Product Details:
Place of Origin: | China |
Brand Name: | Veson/OEM/ |
Certification: | CE ISO |
Model Number: | VSF Series |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Ea |
---|---|
Price: | Fob Shanghai /EXW/ |
Packaging Details: | Plywooden case packing with metal straps |
Detail Information |
|||
Type: | Heavy Duty | Material: | Cast Iron |
---|---|---|---|
Color: | Red Or Customer-specific Need | Name: | Pneumatic Rotary Actuator |
Power: | Pneumatic | Application: | Valves, Dairy, Beer, Water, Chemical |
Available Accessories: | Solenoid Valve, Limit Switch, Positioner, Hand Wheel Air Filter Regulator | ||
Highlight: | control valve actuator,spring return pneumatic actuator |
Product Description
spring return scotch yoke actuator operators to install automated valves
The feature of our products:
1 They are widely used in petroleum and petrochemical,steel,shipbuilding,energy,electric powder,water treatment,paper making,oil refining,matallurgy,air conditioning,electronics and other industries.
2. The extruded cylinder body is made of high quality aluminum alloy with fine machined socket and hard anodized outer surface( anodisation would be provided at special occasion + coat)to prolong the service life and lower the coefficient of friction.
3. Die-casting aluminum powder polyester painted in different colours,PTFE or Nickel plated.
4. The two independent extemal travel stop adjustment bolts can adjust ±5°at both open and close directions easily and precisely.
5. Made from low friction,long-life compound material,to avoid the direct contact between metals.The maintenance and replacement are easy and convenient.
6. NBR rubber O-rings provide trouble-free operation at standard temperature ranges,for high and low temperature applications Viton or Silicone.
7. Temperature range -20°C to +80°C (-Standard ) ., -35°C~+80°C( Low temperature ), -15°C~+150°C ( High temperature ).
8. Better price and good quality,if you have a trial order ,you will hope a long-time cooperation with us.
► Our advantage:
1 | We have professional technicists to ensure advanced design. |
2 | We have professional and technical QC team to ensure 100% products checking. |
3 | We have own factory with competitive price and good quality. |
4 | Our products is accepted by all over the world. |
5 | We have own import and export right. small order can be accepted. |
6 | High quality with competitive price, short delivery time. |
7 | Good quality material and advanced production equipment. |
8 | Efficient sales team and excellent customer service. |
9 | Our products have passed the CE and ISO Certificate |
VSF Series of spring return pneumatic torque table(SR5) | |||||||||||||||
Nm | |||||||||||||||
Model | Spring torque | Air torque | |||||||||||||
3BAR | 4BAR | 5BAR | 6BAR | ||||||||||||
SST | SRT | SET | AST | ART | AET | AST | ART | AET | AST | ART | AET | AST | ART | AET | |
VSF14-200SR5 | 789 | 402 | 506 | 320 | 110 | 47 | 597 | 276 | 324 | 877 | 456 | 594 | 1151 | 609 | 878 |
VSF14-250 SR5 | 1345 | 670 | 815 | 490 | 150 | 12 | 917 | 412 | 448 | 1347 | 671 | 818 | 1798 | 935 | 1320 |
VSF14-300 SR5 | 1880 | 957 | 1206 | 707 | 230 | 62 | 1337 | 609 | 692 | 1908 | 975 | 1235 | 2598 | 1365 | 1953 |
VSF16-250 SR5 | 1553 | 795 | 1011 | 616 | 207 | 75 | 1159 | 533 | 617 | 1692 | 881 | 1150 | 2245 | 1184 | 1703 |
VSF16-300 SR5 | 2421 | 1202 | 1455 | 840 | 273 | 70 | 1626 | 744 | 855 | 2438 | 1213 | 1472 | 3197 | 1687 | 2426 |
VSF16-350 SR5 | 3194 | 1637 | 2085 | 1093 | 297 | 0 | 2166 | 941 | 971 | 3215 | 1744 | 2106 | 4312 | 2228 | 3116 |
VSF25-350 SR5 | 3960 | 2013 | 2534 | 1406 | 380 | 0 | 2689 | 1149 | 1143 | 3826 | 2044 | 2400 | 5255 | 2689 | 3709 |
VSF25-400 SR5 | 4955 | 2466 | 2999 | 2149 | 774 | 430 | 3829 | 1782 | 2110 | 5309 | 2685 | 3352 | 7190 | 3798 | 5471 |
VSF25-450 SR5 | 6326 | 3117 | 3726 | 2621 | 919 | 442 | 4752 | 2197 | 2573 | 6788 | 3402 | 4188 | 9013 | 4754 | 6834 |
VSF30-450 SR5 | 7929 | 3968 | 4869 | 2859 | 719 | 0 | 5455 | 2277 | 2134 | 7892 | 4001 | 4922 | 10649 | 5393 | 7327 |
VSF30-500 SR5 | 9375 | 4712 | 5824 | 3935 | 1255 | 248 | 7147 | 3182 | 3459 | 10042 | 5125 | 6490 | 13571 | 7036 | 9883 |
VSF30-550 SR5 | 11426 | 5741 | 7092 | 4414 | 1940 | 0 | 8306 | 3651 | 3863 | 12106 | 6162 | 7772 | 16090 | 8321 | 11647 |
VSF35-550 SR5 | 14449 | 7241 | 8907 | 5814 | 2062 | 1062 | 10750 | 5025 | 5999 | 15527 | 7909 | 9984 | 20624 | 10949 | 15873 |
VSF35-600 SR5 | 18185 | 8971 | 10752 | 6823 | 2296 | 833 | 12707 | 5827 | 6718 | 18327 | 9058 | 10894 | 24477 | 12889 | 18487 |
VSF35-700 SR5 | 23864 | 11772 | 14109 | 10627 | 4056 | 2896 | 18654 | 8873 | 10923 | 25470 | 12767 | 15715 | 34710 | 18506 | 26979 |
VSF40-600 SR5 | 21426 | 10879 | 13666 | 7637 | 2061 | 0 | 14745 | 6326 | 6342 | 21644 | 11014 | 13884 | 28961 | 14856 | 20558 |
VSF40-700 SR5 | 30015 | 15120 | 18757 | 10364 | 2839 | 0 | 20074 | 8665 | 8811 | 29304 | 14679 | 18046 | 39495 | 20318 | 28232 |
VSF40-800 SR5 | 35425 | 17702 | 21679 | 16204 | 5648 | 2623 | 28917 | 13276 | 15336 | 41095 | 21218 | 27349 | 54343 | 28532 | 40763 |
VSF48-800 SR5 | 45789 | 23214 | 29097 | 16866 | 4879 | 0 | 31836 | 13842 | 14336 | 44755 | 22574 | 28063 | 61685 | 31770 | 44215 |
VSF48-900 SR5 | 57348 | 28690 | 35200 | 22906 | 6959 | 291 | 41849 | 18324 | 19233 | 58269 | 29261 | 36121 | 79735 | 41056 | 57120 |
VSF48-1000 SR5 | 69602 | 34789 | 42618 | 25938 | 8152 | 1236 | 49356 | 22203 | 24653 | 72776 | 36756 | 45792 | 96191 | 50304 | 71488 |
VSF60-800 SR5 | 63398 | 31515 | 38261 | 23891 | 7319 | 505 | 43980 | 19372 | 20595 | 61439 | 30300 | 36302 | 84160 | 43480 | 60774 |
VSF60-900 SR5 | 78878 | 39710 | 49217 | 26840 | 8658 | 2020 | 52335 | 23954 | 27514 | 76967 | 38524 | 47305 | 103324 | 54548 | 78503 |
VSF60-1000 SR5 | 95891 | 47761 | 58177 | 39480 | 13860 | 6721 | 71015 | 32781 | 38256 | 97605 | 48824 | 59891 | 134084 | 70623 | 101326 |
VSF60-1100 SR5 | 112369 | 57081 | 71764 | 42517 | 12632 | 0 | 80728 | 35559 | 37801 | 116733 | 59787 | 76127 | 157151 | 81412 | 114224 |
VSF60-1000X2 SR5 | 170261 | 84792 | 112378 | 203622 | 104808 | 145739 | |||||||||
AST - Air start torque - Spring start torque | |||||||||||||||
ART - Air run torque SRT - Spring run torque | |||||||||||||||
AET - Air end torque SET - Spring end torque |
MORE DETAIL
1. Warranty
Warranty 1 year
Great quality products
We stand behind the quality of our products 100%
All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in new condition in OEM or Original packing.
2. Package
Our package method is in perfect condition, or according customized.
3. Payment
MOQ: Customer design
We usually accept T/T(wire transfer), Western Union
Trade Currency: USD or RMB
TT 30% deposit in advance,70% balance paid before shipment.
(sample order) T/T / Western union 100% at sight
