Scotch Yoke Pneumatic Gate Valve Actuator / Air Operated Actuator For Fail Safe Valves
Product Details:
| Place of Origin: | China |
| Brand Name: | Veson/OEM/ |
| Certification: | CE ISO |
| Model Number: | VSF Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ea |
|---|---|
| Price: | Fob Shanghai /EXW/ |
| Packaging Details: | Plywooden case packing with metal straps |
| Delivery Time: | 40 days |
|
Detail Information |
|||
| Type: | Heavy Duty | Material: | Cast Iron |
|---|---|---|---|
| Color: | Red Or Customer-specific Need | Name: | Scotch Yoke Pneumatic Actuator |
| Power: | Pneumatic Or Air | Standard: | ISO5211 And DIN3337 |
| Highlight: | control valve actuator,on off valve actuator |
||
Product Description

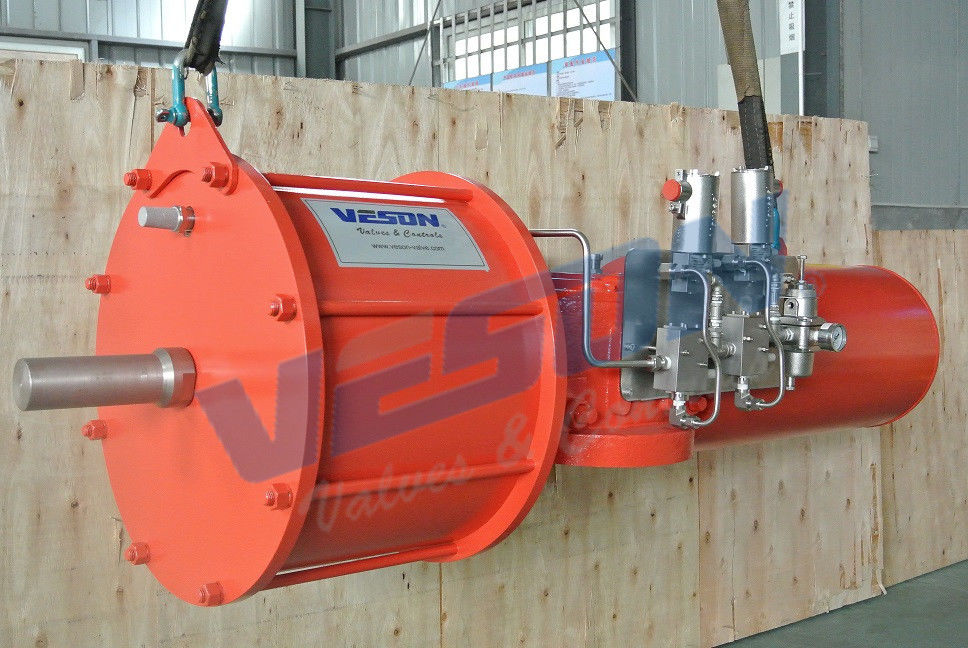

Hydraulic Scotch Yoke Type Pneumatic Actuator Nodular Cast Iron CE Approved
Features
1, structure is compact rack and pinion pneumatic actuators
2, low friction ,long service life and the switching frequency is up to 1000000 times
3, used for angular stroke valves, ball valves, butterfly valves and plug valves
4, mounting flange in accordance to DIN/ISO5211,DIN3337,control valve with NAMUR standard
5, high quality aluminum alloy, the surface hard anodized +
6, through a variety of certificate : ATEX, CE, MD, CQC certificate
7, all products in the factory, are to undergo a rigorous testing, each actuator are marked on the production code, easy identification and tracking service
8, high-end products, excellent quality, complete certification system
► Our advantage:
| 1 | We have professional technicists to ensure advanced design. |
| 2 | We have professional and technical QC team to ensure 100% products checking. |
| 3 | We have own factory with competitive price and good quality. |
| 4 | Our products is accepted by all over the world. |
| 5 | We have own import and export right. small order can be accepted. |
| 6 | High quality with competitive price, short delivery time. |
| 7 | Good quality material and advanced production equipment. |
| 8 | Efficient sales team and excellent customer service. |
| 9 | Our products have passed the CE and ISO Certificate |
| VSF Series of spring return pneumatic torque table(SR5) | |||||||||||||||
| Nm | |||||||||||||||
| Model | Spring torque | Air torque | |||||||||||||
| 3BAR | 4BAR | 5BAR | 6BAR | ||||||||||||
| SST | SRT | SET | AST | ART | AET | AST | ART | AET | AST | ART | AET | AST | ART | AET | |
| VSF14-200SR5 | 789 | 402 | 506 | 320 | 110 | 47 | 597 | 276 | 324 | 877 | 456 | 594 | 1151 | 609 | 878 |
| VSF14-250 SR5 | 1345 | 670 | 815 | 490 | 150 | 12 | 917 | 412 | 448 | 1347 | 671 | 818 | 1798 | 935 | 1320 |
| VSF14-300 SR5 | 1880 | 957 | 1206 | 707 | 230 | 62 | 1337 | 609 | 692 | 1908 | 975 | 1235 | 2598 | 1365 | 1953 |
| VSF16-250 SR5 | 1553 | 795 | 1011 | 616 | 207 | 75 | 1159 | 533 | 617 | 1692 | 881 | 1150 | 2245 | 1184 | 1703 |
| VSF16-300 SR5 | 2421 | 1202 | 1455 | 840 | 273 | 70 | 1626 | 744 | 855 | 2438 | 1213 | 1472 | 3197 | 1687 | 2426 |
| VSF16-350 SR5 | 3194 | 1637 | 2085 | 1093 | 297 | 0 | 2166 | 941 | 971 | 3215 | 1744 | 2106 | 4312 | 2228 | 3116 |
| VSF25-350 SR5 | 3960 | 2013 | 2534 | 1406 | 380 | 0 | 2689 | 1149 | 1143 | 3826 | 2044 | 2400 | 5255 | 2689 | 3709 |
| VSF25-400 SR5 | 4955 | 2466 | 2999 | 2149 | 774 | 430 | 3829 | 1782 | 2110 | 5309 | 2685 | 3352 | 7190 | 3798 | 5471 |
| VSF25-450 SR5 | 6326 | 3117 | 3726 | 2621 | 919 | 442 | 4752 | 2197 | 2573 | 6788 | 3402 | 4188 | 9013 | 4754 | 6834 |
| VSF30-450 SR5 | 7929 | 3968 | 4869 | 2859 | 719 | 0 | 5455 | 2277 | 2134 | 7892 | 4001 | 4922 | 10649 | 5393 | 7327 |
| VSF30-500 SR5 | 9375 | 4712 | 5824 | 3935 | 1255 | 248 | 7147 | 3182 | 3459 | 10042 | 5125 | 6490 | 13571 | 7036 | 9883 |
| VSF30-550 SR5 | 11426 | 5741 | 7092 | 4414 | 1940 | 0 | 8306 | 3651 | 3863 | 12106 | 6162 | 7772 | 16090 | 8321 | 11647 |
| VSF35-550 SR5 | 14449 | 7241 | 8907 | 5814 | 2062 | 1062 | 10750 | 5025 | 5999 | 15527 | 7909 | 9984 | 20624 | 10949 | 15873 |
| VSF35-600 SR5 | 18185 | 8971 | 10752 | 6823 | 2296 | 833 | 12707 | 5827 | 6718 | 18327 | 9058 | 10894 | 24477 | 12889 | 18487 |
| VSF35-700 SR5 | 23864 | 11772 | 14109 | 10627 | 4056 | 2896 | 18654 | 8873 | 10923 | 25470 | 12767 | 15715 | 34710 | 18506 | 26979 |
| VSF40-600 SR5 | 21426 | 10879 | 13666 | 7637 | 2061 | 0 | 14745 | 6326 | 6342 | 21644 | 11014 | 13884 | 28961 | 14856 | 20558 |
| VSF40-700 SR5 | 30015 | 15120 | 18757 | 10364 | 2839 | 0 | 20074 | 8665 | 8811 | 29304 | 14679 | 18046 | 39495 | 20318 | 28232 |
| VSF40-800 SR5 | 35425 | 17702 | 21679 | 16204 | 5648 | 2623 | 28917 | 13276 | 15336 | 41095 | 21218 | 27349 | 54343 | 28532 | 40763 |
| VSF48-800 SR5 | 45789 | 23214 | 29097 | 16866 | 4879 | 0 | 31836 | 13842 | 14336 | 44755 | 22574 | 28063 | 61685 | 31770 | 44215 |
| VSF48-900 SR5 | 57348 | 28690 | 35200 | 22906 | 6959 | 291 | 41849 | 18324 | 19233 | 58269 | 29261 | 36121 | 79735 | 41056 | 57120 |
| VSF48-1000 SR5 | 69602 | 34789 | 42618 | 25938 | 8152 | 1236 | 49356 | 22203 | 24653 | 72776 | 36756 | 45792 | 96191 | 50304 | 71488 |
| VSF60-800 SR5 | 63398 | 31515 | 38261 | 23891 | 7319 | 505 | 43980 | 19372 | 20595 | 61439 | 30300 | 36302 | 84160 | 43480 | 60774 |
| VSF60-900 SR5 | 78878 | 39710 | 49217 | 26840 | 8658 | 2020 | 52335 | 23954 | 27514 | 76967 | 38524 | 47305 | 103324 | 54548 | 78503 |
| VSF60-1000 SR5 | 95891 | 47761 | 58177 | 39480 | 13860 | 6721 | 71015 | 32781 | 38256 | 97605 | 48824 | 59891 | 134084 | 70623 | 101326 |
| VSF60-1100 SR5 | 112369 | 57081 | 71764 | 42517 | 12632 | 0 | 80728 | 35559 | 37801 | 116733 | 59787 | 76127 | 157151 | 81412 | 114224 |
| VSF60-1000X2 SR5 | 170261 | 84792 | 112378 | 203622 | 104808 | 145739 | |||||||||
| AST - Air start torque - Spring start torque | |||||||||||||||
| ART - Air run torque SRT - Spring run torque | |||||||||||||||
| AET - Air end torque SET - Spring end torque | |||||||||||||||
