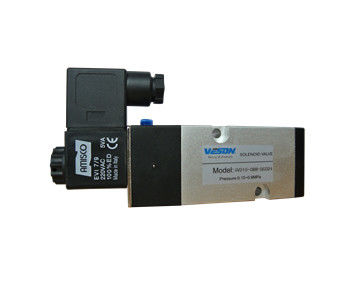

Aluminum Alloy 5 Way 2 Position Solenoid Valve , Air Operated Solenoid Valve IP65
Product Details:
| Place of Origin: | China |
| Brand Name: | Veson |
| Certification: | ISO CE |
| Model Number: | 4 V series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | cartoon case with reforinced packing |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Selenoid Valve: | 5 Port 2 Position | Name: | Pneumatic Solenoid Valve |
|---|---|---|---|
| Media: | Air | Material: | Aluminum Alloy |
| Application: | General | Action: | Internally Piloted |
| High Light: | control valve accessories,valve position indicator limit switch box |
||
Product Description
Amisco coil(Italy Made), Aluminum alloy body with hard anodized treatment, 5/2 or 3/2 function via 180゜turn of the patented rotary O-ring., 24VDC or 120/240VAC @ 50/60Hz; IP65 & EExmIIT4
Features
● 5 way 2 position solenoid valve (solenoid one end and spring on the other) suitable for use in controlling air actuators or cylinders.
● Manual override
● Led indicator plug (IP65).
● Fully encapsulated low wattage coil.
● This unit can also be mounted on a manifold of up to 12 units.
|
Item
|
4v210-08 12v 24v dc 5/2 Solenoid Valve Pneumatic Air Valve
|
||
|
Position and Way No.
|
Two-position Five-way
|
||
|
Effective Sectional Area
|
12mm2
|
||
|
Working Medium
|
40 Micron Filtered Air
|
||
|
Port size:
|
1/4"
|
||
|
Motion Pattern
|
Inner Guide Type
|
||
|
Working Pressure
|
0.15~0.8Mpa
|
||
|
Max Working Pressure
|
1.2Mpa
|
||
|
Operating Temperature
|
-5~50℃
|
||
|
Insulation
|
F class
|
||
|
Highest Action Frequency
|
5 Cycle/Sec
|
||
|
Wiring Form
|
Lead Wire or Connector Type
|
||
