Single & Double Acting Hydraulic Rotary Actuator , Red Electric Hydraulic Actuator
Product Details:
| Place of Origin: | China |
| Brand Name: | VESON |
| Certification: | ISO CE |
| Model Number: | HSF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Exw Fob Shanghai |
| Packaging Details: | plywood case with reinforced packing |
| Delivery Time: | 6-8 weeks |
|
Detail Information |
|||
| HSF: | HSF Hydraulic Actuators | Material: | Carbon Steel |
|---|---|---|---|
| Color: | Standard Color Is Red | Standard Operating Temperature: | -20°C / +80°C |
| Acting Type: | Single & Double Acting | Mounting Style: | Earrings, Flange, Foot Mounting |
| Application: | Valves, Dairy, Beer, Water, Chemical Onshore Offshore | Standard: | ISO5211 And DIN3337 |
| Highlight: | hydraulic rotary actuator,hydraulic cylinder actuator |
||
Product Description

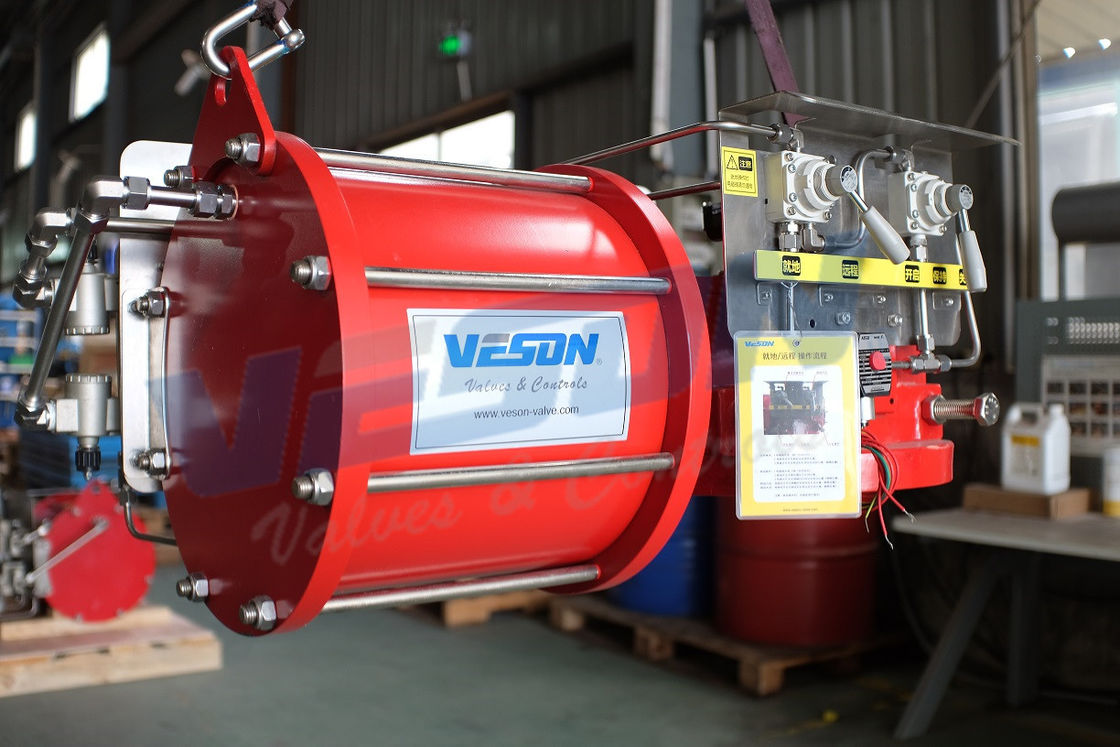

single & double acting Hydraulic Rotary Actuator , red electric hydraulic actuator
VESON HSF series hydraulic actuators single & double acting actuators are similar to VSF scotch yoke pneumatic actuator range.
Many components are interchangeable, the only major difference is the hydraulic power cylinder..
- Fabricated entirely from carbon steel.
- Low pressure carbon steel hydraulic cylinder suitable for supply pressures up to 100 bar design.
- High pressure carbon steel hydraulic cylinder suitable for supply pressures up to 200 bar design.
- Carbon steel piston with dynamic floating O-ring seals coupled with lubricating piston guide rings.
- Carbon steel spring cartridge (only for single acting) with safety facility which allows safe installation and removal of the whole cartridge assembly.
- Visual position indicator directly connected to the valve stem showing actuator / valve full linear stroke.
- 17.4 PH stainless steel piston rod, which prevents corrosion and allows for minimum sliding friction on dynamic seals.
- ASTM A 320 L7 alloy steel tie rods, with standard electrolytic zinc coating according to ASTM B633 FeZn 12 (thickness 12 μm).
- Carbon steel mounting adapter with bottom flange machined according to the valve top mounting with carbon steel nickel-plated special coupling mechanism. Optional for wedge gate valves: coupling with hammer blow effect to facilitate valve unseating.
- Alloy steel galvanized end stoppers available on request.
- Integral manual override facilities.
TECHNICAL SPECIFICATIONS
- Supply pressure up to 200 bar design.
- Actuator thrust output up to 25000 N.
- Spring thrust up to 71753.N.
- Standard operating temperature range -20°C / +80°C.
- Special low temperature application up to -40°C.
- All Veson pressure containing parts are designed according to ASME VIII div.1 and EN 13445
