SS316 Pneumatic Butterfly Valve Air Operated For Marine SS Air actuator Actuated valve butterfly valve actuation

Basic Information
Place of Origin: China
Brand Name: VESON
Certification: ISO CE
Minimum Order Quantity: 1
Price: Fob Shanghai ,EXW
Packaging Details: plywood case with reforinced packing
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10000
Detail Information
Butterfly Valve: Wafer Type Type: Double Acting Or Spring Return
Name: Air Operated Butterfly Valve Pressure Range: 25mm - 200mm: 16 Bar 250mm - 300mm: 10 Bar
Temperature Range: -50oC To 120oC Application: Marine Industry
High Light:

SS316 Pneumatic Butterfly Valve

,

Air Operated Pneumatic Butterfly Valve

,

Hard Anodizing Pneumatic Butterfly Valve


Product Description

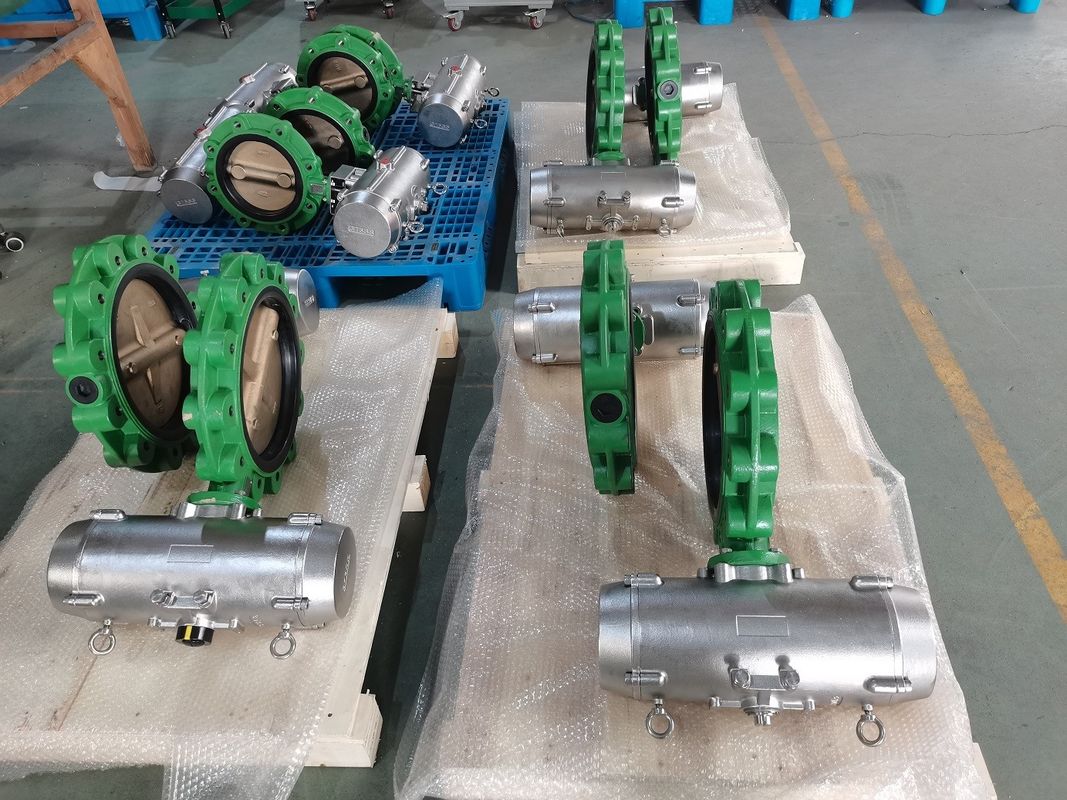

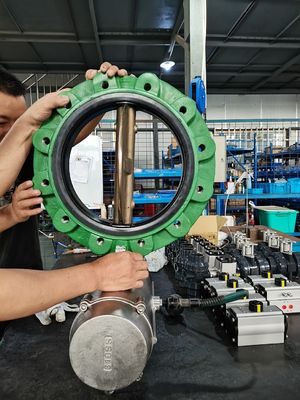

SS316 Pneumatic Butterfly Valve Air Operated For Marine Industry


Pneumatic actuator


Material Stainless Steel, SUS304, SUS316, SUS316L
Rotary Angle 0~90 degree
Structure rack and pinion rotary actuator
Working Pressure 2~8bar
Surface Treatment hard anodizing
Working Temperature Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F);

High Temperature: -20ºC(-4°F) ~ 150ºC (+302°F);

Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection NAMUR, ISO5211, and DIN3337
Application ball valve, butterfly valve, and rotary machine
Cup Color STEEL



Butterfly  valve Sizes:
DN 40 – DN 1200 (1½” ~ 48″)
DN 1400 – DN 2000 (56″ ~ 80″) (other sizes on request)

Flange connection:
EN1092 (PN 6-10-16, PN25 up to DN 400)
ASME B 16.5 (class 150 – 300)
JIS B 2239 & 2220 (5K, 10K, 16K, 30K)

Temperature range -23°C to +200°C
Short face to face acc. EN 558-1 row 20
Top flange acc. EN ISO 5211
Vacuum to 1*10-3 0.2 Torr absolute

SS316 Pneumatic Butterfly Valve Air Operated For Marine SS Air actuator Actuated valve  butterfly valve actuation 0
