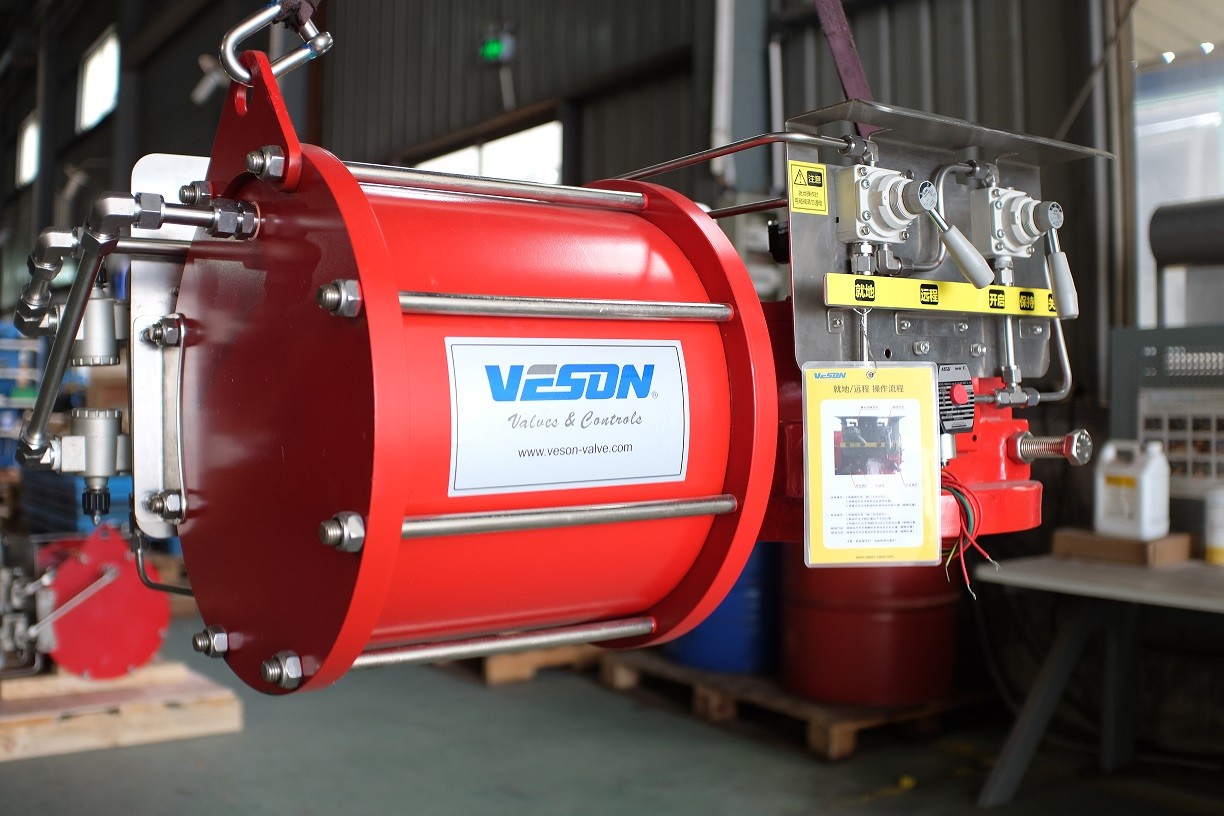

• Heavy Duty Scotch Yoke Pneumatic Actuator For Chemical And Petrochemical
Heavy Duty Scotch Yoke Pneumatic Actuator For Chemical And Petrochemical

Heavy Duty Scotch Yoke Pneumatic Actuator For Chemical And Petrochemical

Product Details:

Place of Origin: China
Brand Name: Veson/OEM/
Certification: CE ISO
Model Number: VSF Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Plywooden case packing with metal straps
Delivery Time: 40 days
Get Best Price Contact Now

Detail Information

Name: Scotch Yoke Pneumatic Actuator Material: Cast Iron
Type: Heavy Duty Application: Chemical And Petrochemical
Power: Pneumatic Or Air Standard: ISO5211 And DIN3337
High Light:

control valve actuator

,

on off valve actuator

Product Description

Heavy Duty Scotch Yoke Pneumatic Actuator For Chemical And Petrochemical



Scotch Yoke Pneumatic Actuator Features



  1. low friction ,long service life and the switching frequency is up to 1000000 times
  2. used for angular stroke valves, ball valves, butterfly valves and plug valves
  3. mounting flange in accordance to DIN/ISO5211,DIN3337,control valve with NAMUR standard
  4. high quality aluminum alloy, the surface hard anodized +
  5. through a variety of certificate : ATEX, CE, MD, CQC certificate
  6. all products in the factory, are to undergo a rigorous testing, each actuator are marked on the production code, easy identification and tracking service
  7. high-end products, excellent quality, complete certification system



► Our advantage:



1 We have professional technicists to ensure advanced design.
2 We have professional and technical QC team to ensure 100% products checking.
3 We have own factory with competitive price and good quality.
4 Our products is accepted by all over the world.
5 We have own import and export right. small order can be accepted.
6 High quality with competitive price, short delivery time.
7 Good quality material and advanced production equipment.
8 Efficient sales team and excellent customer service.
9 Our products have passed the CE and ISO Certificate







VSF Series of spring return pneumatic torque table(SR5)
Nm
Model Spring torque Air torque
        3BAR 4BAR 5BAR 6BAR
  SST SRT SET AST ART AET AST ART AET AST ART AET AST ART AET
VSF16-250 SR5 1553 795 1011 616 207 75 1159 533 617 1692 881 1150 2245 1184 1703
VSF16-300 SR5 2421 1202 1455 840 273 70 1626 744 855 2438 1213 1472 3197 1687 2426
VSF16-350 SR5 3194 1637 2085 1093 297 0 2166 941 971 3215 1744 2106 4312 2228 3116
VSF25-350 SR5 3960 2013 2534 1406 380 0 2689 1149 1143 3826 2044 2400 5255 2689 3709
VSF25-400 SR5 4955 2466 2999 2149 774 430 3829 1782 2110 5309 2685 3352 7190 3798 5471
VSF25-450 SR5 6326 3117 3726 2621 919 442 4752 2197 2573 6788 3402 4188 9013 4754 6834
VSF30-450 SR5 7929 3968 4869 2859 719 0 5455 2277 2134 7892 4001 4922 10649 5393 7327
VSF30-500 SR5 9375 4712 5824 3935 1255 248 7147 3182 3459 10042 5125 6490 13571 7036 9883
VSF30-550 SR5 11426 5741 7092 4414 1940 0 8306 3651 3863 12106 6162 7772 16090 8321 11647
VSF35-550 SR5 14449 7241 8907 5814 2062 1062 10750 5025 5999 15527 7909 9984 20624 10949 15873
VSF35-600 SR5 18185 8971 10752 6823 2296 833 12707 5827 6718 18327 9058 10894 24477 12889 18487
VSF35-700 SR5 23864 11772 14109 10627 4056 2896 18654 8873 10923 25470 12767 15715 34710 18506 26979
VSF40-600 SR5 21426 10879 13666 7637 2061 0 14745 6326 6342 21644 11014 13884 28961 14856 20558
VSF40-700 SR5 30015 15120 18757 10364 2839 0 20074 8665 8811 29304 14679 18046 39495 20318 28232
VSF40-800 SR5 35425 17702 21679 16204 5648 2623 28917 13276 15336 41095 21218 27349 54343 28532 40763
VSF48-800 SR5 45789 23214 29097 16866 4879 0 31836 13842 14336 44755 22574 28063 61685 31770 44215
VSF48-900 SR5 57348 28690 35200 22906 6959 291 41849 18324 19233 58269 29261 36121 79735 41056 57120
VSF48-1000 SR5 69602 34789 42618 25938 8152 1236 49356 22203 24653 72776 36756 45792 96191 50304 71488
VSF60-800 SR5 63398 31515 38261 23891 7319 505 43980 19372 20595 61439 30300 36302 84160 43480 60774
VSF60-900 SR5 78878 39710 49217 26840 8658 2020 52335 23954 27514 76967 38524 47305 103324 54548 78503
VSF60-1000 SR5 95891 47761 58177 39480 13860 6721 71015 32781 38256 97605 48824 59891 134084 70623 101326
VSF60-1100 SR5 112369 57081 71764 42517 12632 0 80728 35559 37801 116733 59787 76127 157151 81412 114224
VSF60-1000X2 SR5 170261 84792 112378             203622 104808 145739
AST - Air start torque - Spring start torque
ART - Air run torque SRT - Spring run torque
AET - Air end torque SET - Spring end torque





 MORE DETAIL



1. Warranty

Warranty 1 year

Great quality products

We stand behind the quality of our products 100%

All of our items come with a warranty to give you a peace of mind.

New Guaranteed: All of our items are in new condition in OEM or Original packing.



2. Package

Our package method is in perfect condition, or according customized.



3. Payment

MOQ: Customer design

We usually accept T/T(wire transfer), Western Union

Trade Currency: USD or RMB

TT 30% deposit in advance,70% balance paid before shipment.

(sample order) T/T / Western union 100% at sight





Want to Know more details about this product
I am interested in Heavy Duty Scotch Yoke Pneumatic Actuator For Chemical And Petrochemical could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
